Ultra fine high-purity alumina is a cornerstone material in fields such as electronic information, new energy, high-end manufacturing, and biomedicine. Its application value lies in the precise control of purity, particle size, crystal form, and morphology.
Purity determines the upper limit of performance, particle size determines sintering/dispersion/activity, and crystal structure determines functional characteristics. With the development of 5G, solid-state batteries, third-generation semiconductors, and biomedicine, the demand for 6N grade ultra-high purity, monodisperse nanoscale, and spherical alumina will continue to grow. This article discusses the practical applications of ultrafine and high-purity alumina powder.
Key Performance Comparison of Alumina Powder for Electronics
|
Performance Metric |
Standard Alumina |
High Purity Alumina |
Remarks / Significance |
|
Purity Grade |
95-99% |
>99.99% |
4N/5N is the industry standard for ICs |
|
Thermal Conductivity (W/m⋅K) |
15−20 |
28−35 |
Higher purity ensures faster heat dissipation |
|
Volume Resistivity (Ω⋅cm) |
10x12 |
>10x14 |
Critical for preventing leakage in micro-circuits |
|
Dielectric Strength (kV/mm) |
8−12 |
15−20 |
High voltage insulation in thin-film layers |
|
Dielectric Loss (tanδtanδ) |
∼0.002 |
<0.0001 |
Essential for low signal loss in 5G/RF apps |
|
Average Particle Size (D50D50, μmμm) |
1−50 (Variable) |
0.2−2.0 (Controlled) |
Uniformity is key for high-density EMC fillers |
|
Impurity Content (Na,Fe,Si) |
>500 ppm |
<10 ppm |
Low ions prevent circuit corrosion and failure |
First、 Electronics and Semiconductors: Core Materials for Insulation, Heat Dissipation, and Packaging
1. Integrated Circuit (IC) and Semiconductor Packaging
① Ceramic substrate/packaging shell
The substrate made of 99.99% high-purity α - Al ₂ O3 has a stable dielectric constant (~10), extremely low loss (tan δ<0.0001), high thermal conductivity (~30 W/(m · K)), and insulation withstand voltage>10 kV/mm. It is used as a substrate and sealing package for high-frequency/high-speed chips and power devices, solving the problems of heat dissipation and electrical isolation.

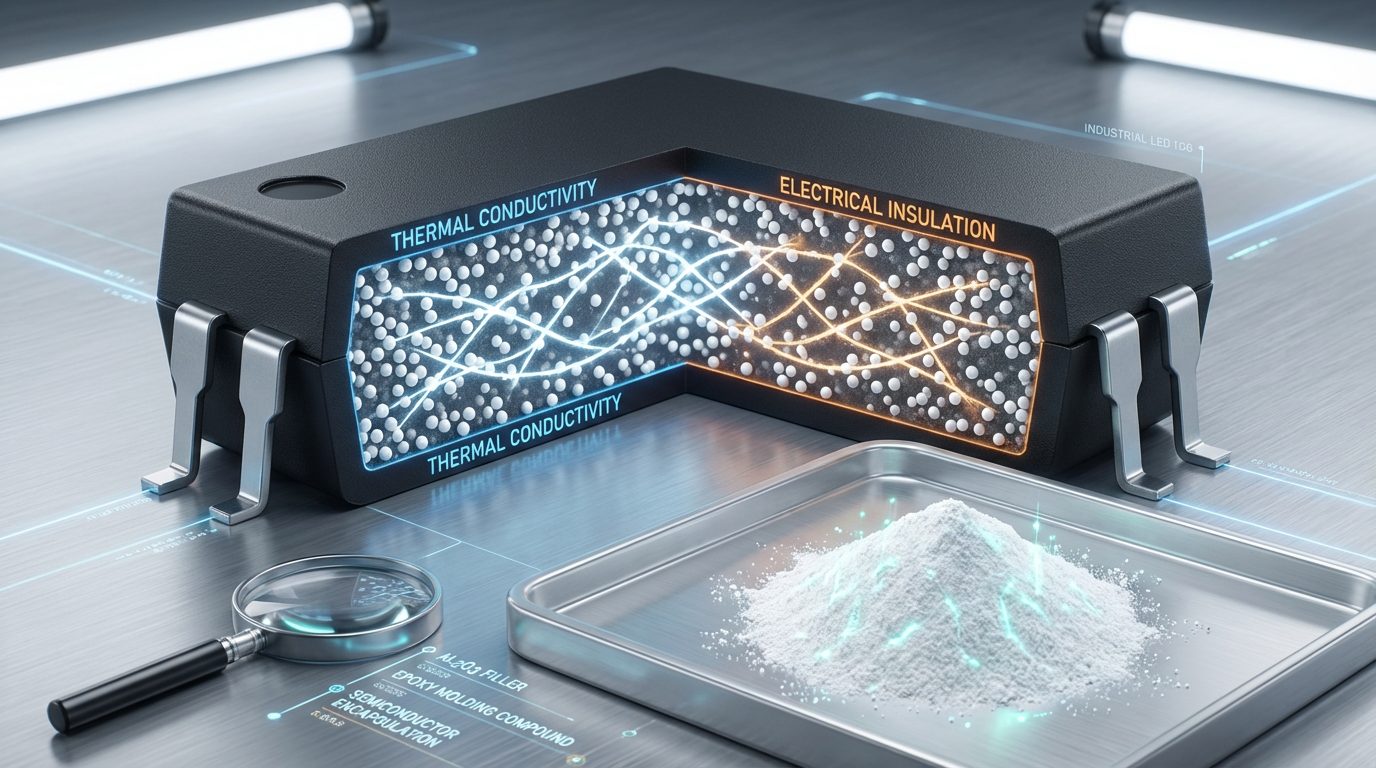

② Epoxy plastic sealing material (EMC) filler
Submicron grade high-purity Al2O3filled epoxy resin increases the thermal conductivity of the packaging material to 5-6 W/(m · K) while maintaining low dielectric loss, making it suitable for high-power chips such as 5G base stations and automotive electronics.
Key indicators: purity ≥ 99.99%, particle size 0.3-0.5 μ m, high sphericity, Na/Fe/Si impurities<10ppm.
2. LED and Optoelectronics
① Sapphire substrate (Al2O3 single crystal)
5N grade (99.999%) high-purity Al2O3 is the only raw material for crystal growth, and impurities can cause lattice defects and reduce luminous efficiency; Used for LED epitaxy, laser crystal (YAG), optical windows, with a transmittance of>85%.
② LED ceramic heat dissipation substrate
High thermal conductivity Al2O3 ceramic replaces metal substrates, providing insulation, high temperature resistance, and no electromagnetic interference, enhancing the lifespan of high-power LEDs.
3. 5G/RF devices
① Ceramic filters/dielectric resonators
High purity ultrafine Al2O3 regulates the dielectric constant and temperature coefficient, used in base stations and mobile phone RF front-end to achieve signal filtering and frequency stability.
Second, Advanced Ceramics: Integrated Structure/Function
1. Structural ceramics (wear-resistant/high-temperature resistant/high-strength)
① Wear resistant components
Mechanical seal rings, bearings, textile ceramic parts, pump valve liners, hardness 18-25 GPa, wear resistance 2-5 times that of ordinary ceramics.
② Cutting tools
Aluminum oxide based ceramic cutting tools (with TiC/ZrO2 added), used for high-speed cutting of quenched steel and cast iron, with good red hardness (maintaining hardness at 1000 ℃).
③ High temperature crucible/refractory material
High purity Al2O3 crucible is used for sapphire crystal growth, rare earth smelting, and semiconductor single crystal furnaces. It can withstand high temperatures of 2000 ℃ and does not contaminate the melt.
2. Functional ceramics
① Transparent ceramics
High purity ultrafine Al2O3 is prepared by hot pressing/vacuum sintering to produce transparent armor, high-pressure sodium lamp tubes, and laser windows with a transmittance of>80%.
② Bioceramics
Porous high-purity Al2O3 (porosity 70-80%) is used for artificial bone, joint, and dental implants, with good biocompatibility, high strength, wear resistance, and a 120% increase in osteoblast proliferation rate.
Aluminum oxide powder can also be applied to batteries, composite materials, and special coatings. The application scenarios of alumina powder are very wide, and its excellent performance is loved by many manufacturers.
